Vertical lines start incorrectly on second page

Stimulsoft Reports.JS discussion
Post Reply
benfc123
Posts: 6
Joined: Wed Dec 11, 2019 6:18 pm

Vertical lines start incorrectly on second page

Post by benfc123 » Wed Dec 11, 2019 6:33 pm

I am having trouble with vertical lines spanning a Group Header, Data Band and Group Footer.
In the PDF attachment you can see the vertical lines that span the Data Band start correctly on the first page but on the second page they start at the top of the group.

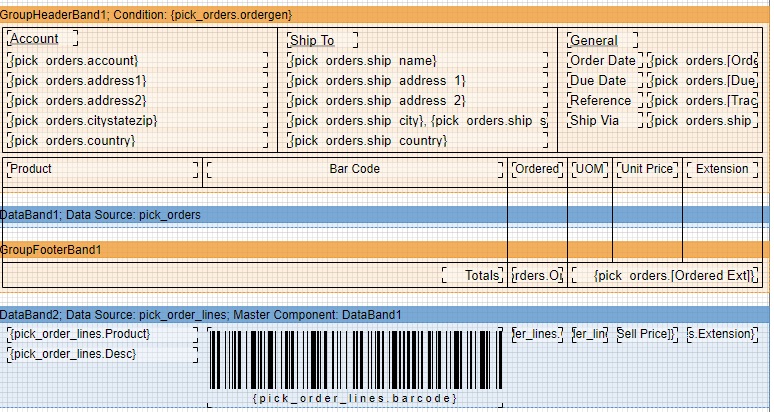

You can see the band layout in the attached image.

I cannot find a setting that would affect this behavior.
Am I trying to do something that will not work?
I am using the browser based editor.
Attachments
New_Pick_Order.pdf
(214.72 KiB) Downloaded 97 times
Lech Kulikowski
Posts: 2702
Joined: Tue Mar 20, 2018 5:34 am

Re: Vertical lines start incorrectly on second page

Post by Lech Kulikowski » Thu Dec 12, 2019 10:49 pm

Hello,

Please send us a sample report with test data which reproduces the issue for analysis.

Thank you.
benfc123
Posts: 6
Joined: Wed Dec 11, 2019 6:18 pm

Re: Vertical lines start incorrectly on second page

Post by benfc123 » Tue Dec 17, 2019 2:41 pm

Here is the report and the data in JSON form, thank you
Attachments
pick_order_data.json
(23.64 KiB) Downloaded 27 times
pick_order.mrt
(342.64 KiB) Downloaded 31 times
Lech Kulikowski
Posts: 2702
Joined: Tue Mar 20, 2018 5:34 am

Re: Vertical lines start incorrectly on second page

Post by Lech Kulikowski » Tue Dec 24, 2019 11:28 am

Hello,

We need some additional time to investigate the issue, we will let you know about the result.

Thank you.
benfc123
Posts: 6
Joined: Wed Dec 11, 2019 6:18 pm

Re: Vertical lines start incorrectly on second page

Post by benfc123 » Mon Jan 06, 2020 4:18 pm

Any luck with this issue?
benfc123
Posts: 6
Joined: Wed Dec 11, 2019 6:18 pm

Re: Vertical lines start incorrectly on second page

Post by benfc123 » Mon Jan 06, 2020 9:30 pm

This problem was reported on the following thread but no answer was ultimately given

viewtopic.php?t=56124
HighAley
Posts: 8275
Joined: Wed Jun 08, 2011 7:40 am
Location: Stimulsoft Office

Re: Vertical lines start incorrectly on second page

Post by HighAley » Mon Jan 13, 2020 6:58 pm

Hello.

The PrintAtBottom property of the Footer band helped to solve that issue.
Please, try to set it too.

Thank you.
