How to get X instead of checkbox in Stimulsoft

[qlikviewramu]

Hi All,
I am new to stimulsoft,

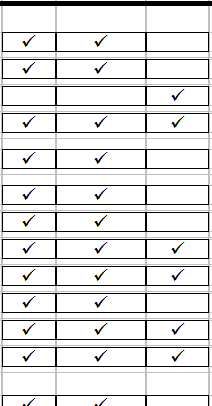

i have generate a report ,but in the report a field contains checkbox with right mark but when i export to excel i need to display X .

How ca i do this.

Thanks in advanced,
Ramu

[Alex K.]

Hello,

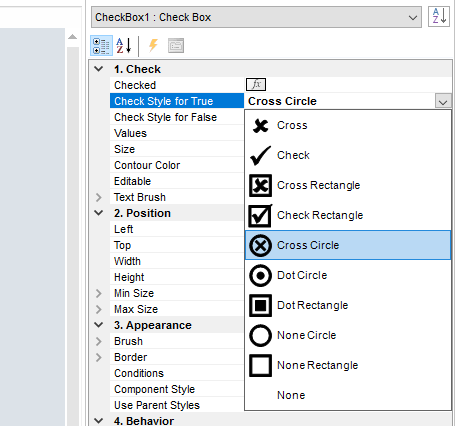

You can select necessary type in the CheckStyle property.

Thank you.

[qlikviewramu]

Hi AleKsey,

Thank's for your reply. But Client requirement is in the report we need to show "checked Rectangle",It's Ok.
But When export that report into excel page the all "checked Rectangle" need to shoe Cross.


Is it possiable?

[Alex K.]

Hello,

You can use the following code in the Exporting event of the report:

Code: Select all

for (int i = 0; i < this.RenderedPages.Count; i++)
{
	foreach (StiComponent component in this.RenderedPages[i].GetComponents())
	{
		if ((component is StiCheckBox) && (component.Name == "CheckBox1"))
		{
			((StiCheckBox)component).CheckStyleForTrue = Stimulsoft.Report.Components.StiCheckStyle.Cross;
		}
	}
}

Thank you.
