Problem with rendering rich text list items on page breaks

Stimulsoft Reports.Net discussion
Post Reply
skopalr
Posts: 5
Joined: Fri Jul 01, 2016 1:20 pm

Problem with rendering rich text list items on page breaks

Post by skopalr » Sun May 24, 2020 9:34 am

Hello,
I think there is a problem with rendering rich text list items on page breaks. If a list item is split on a page break, its bullet or number is rendered on the next page instead of the page where the list item starts and the starting part of the list item is not indented. See the preview of attached reports in designer. I use Stimulsoft Report .Net 2020.2.1.0, OS Windows 10 (64 bit).
Thank you for your help.
Attachments
ReportRtfListTest2.mrt
(19.36 KiB) Downloaded 9 times
ReportRtfListTest.mrt
(19.14 KiB) Downloaded 9 times
Lech Kulikowski
Posts: 2575
Joined: Tue Mar 20, 2018 5:34 am

Re: Problem with rendering rich text list items on page breaks

Post by Lech Kulikowski » Wed May 27, 2020 8:53 pm

Hello,

We are using standard system library for working with RichText, which has limited functionality.
Unfortunately, as is, we can not fix that.

Thank you.
skopalr
Posts: 5
Joined: Fri Jul 01, 2016 1:20 pm

Re: Problem with rendering rich text list items on page breaks

Post by skopalr » Fri May 29, 2020 9:26 am

Hello,

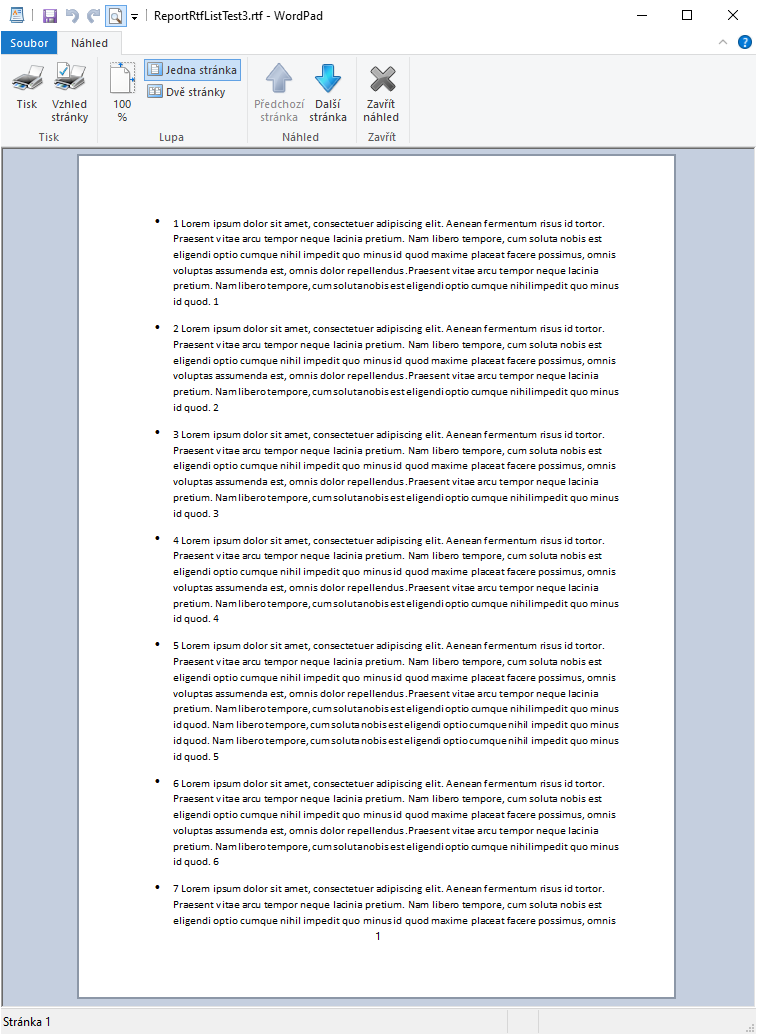

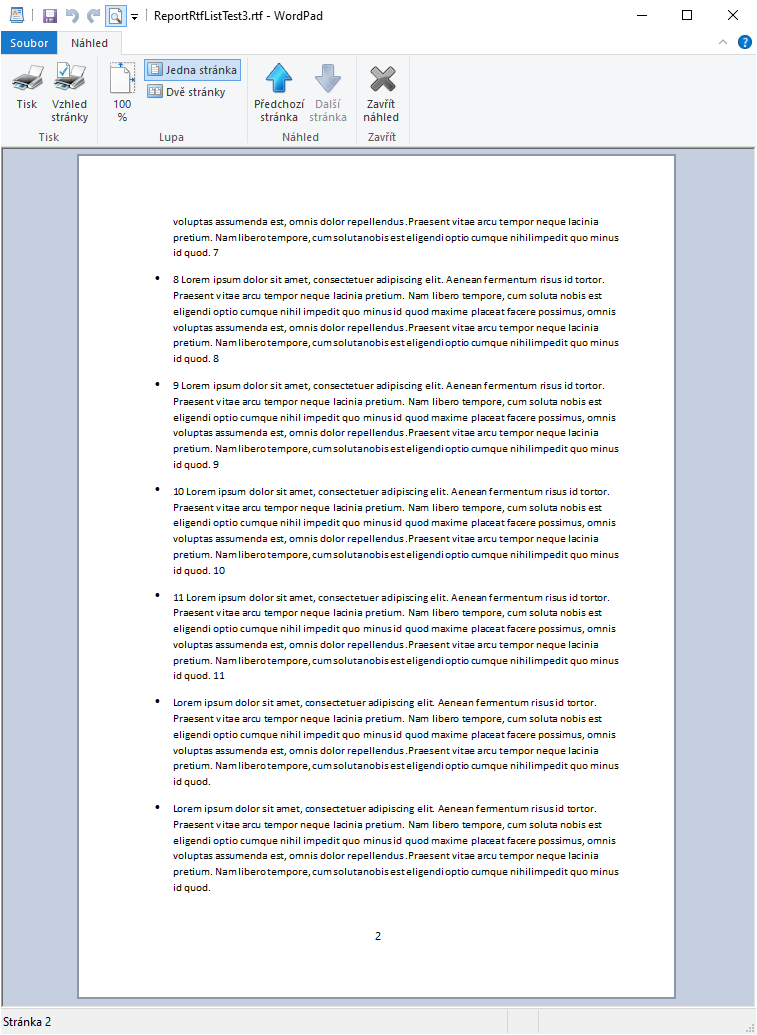

is it really only a problem in the standard RichText system library? I tried to open the RTF in the WordPad as advised in other answers here and in preview and also in "print to PDF" result the list items render correctly on page break, see attached screenshot.
Process Explorer shows that WordPad uses Rich Text Edit Control, v8.5 from C:\Windows\System32\msftedit.dll, 64 bit, version 10.0.18362.329. The same msftedit.dll uses Stimulsoft Designer and my testing appliacation. I tried to put the RICHED20.DLL and MSPTLS.DLL (tried both 32 and 64 bit versions) from Office 2016 to my testing application bin folder but it had no effect, the application loaded the C:\Windows\System32\msftedit.dll.
Attachments
ReportRtfListTest3.rtf
(7.36 KiB) Downloaded 8 times
ReportRtfListTest3.mrt
(20.54 KiB) Downloaded 8 times
Lech Kulikowski
Posts: 2575
Joined: Tue Mar 20, 2018 5:34 am

Re: Problem with rendering rich text list items on page breaks

Post by Lech Kulikowski » Fri May 29, 2020 11:27 am

Hello,

WordPad is a native Windows application, it uses LowLevel access to all functions of the RichText library.
In the Net Framework, only a managed structure with only UI-Control is implemented, without any additional functionality.
Unfortunately, there is nothing else to do.

Thank you.
