Condition for Text-Component in GroupHeaderBand

[tpontow]

Hello Stimulsoft,

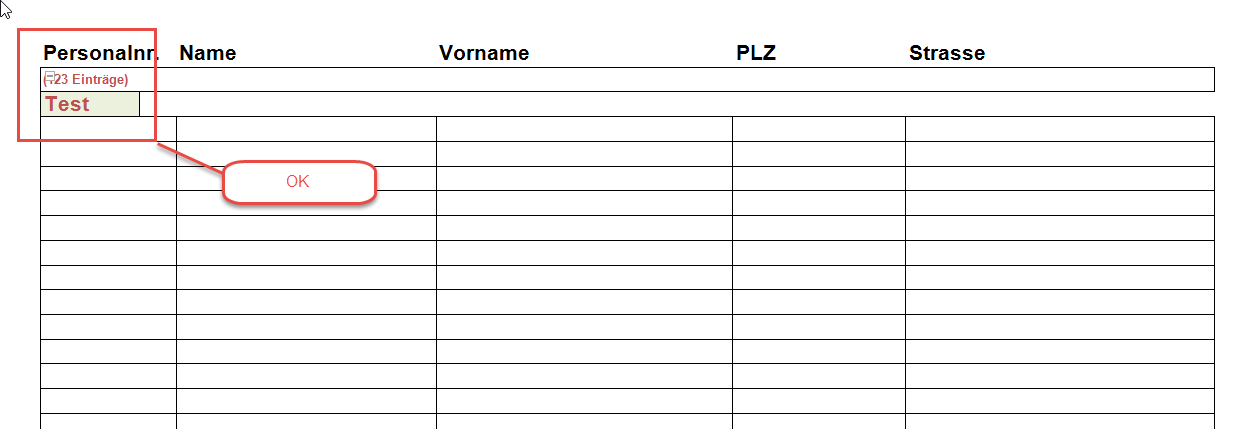

is it possible to define a condition for a StiText-Component which is placed in a GroupHeaderBand so that the text component is only enabled / shown if the group is expanded?

Thanks and regards
Thorsten Pontow

[Alex K.]

Hello,

In this case, you can place Text components from GroupHeader on the DataBand and by Condition show it only for the first line.

Thank you.

[tpontow]

Is it then shown (with expanded Group) on following pages after page break as it is when i place it in Group header? Should Condition be (GroupLine == 1 => textComponent is enabled)?

[Alex K.]

Hello,

Please send us a sample report which reproduces the issue for analysis.

Thank you.

[tpontow]

Hi Alex,

thanks for your response. Meanwhile i found a solution that works for me. I used the GetTag-Event for components in compiled Report.

Code: Select all

dataBandComponent.GetTag += ChangeComponentAppearanceByCellInformation;

In the Event handler i use:

Code: Select all

if (textComponent.Parent is StiGroupHeaderBand groupHeaderBand)
{
        bool collapsed = StiDataBandV2Builder.IsCollapsed(groupHeaderBand, false);
        if (textComponent.Name.StartsWith("GroupHeaderText"))
         {
              textComponent.Enabled = !collapsed;
         }

Kind regards
Thorsten Pontow

[Alex K.]

Hello,

Thank you for the provided solution.
