Angular Designer UpdateImagesArray Cache

Post by anjung »

Hi,

On initital load 2.7MB base64 encoded images are transfered THREE TIMES and once every designer resize (to make it responsive we had to bind [height] to container height)
Isnt' there a better way to do this like copy to /assets or cache them locally?

loading times are quite heavy


UPDATE:

Had to toss the angular implemantation and use iframe + razor view.
Report Designer loading times exceeded 70s when the "old" way is like 1s.

Code: Select all

<div container-content class="d-flex flex-grow-1 core-flex-host">
    <div class="core-flex-fix" #host (window:resize)="updateHeight(host.clientHeight)">
      <stimulsoft-designer-angular (designerLoaded)="updateHeight(host.clientHeight)"
                                   [requestUrl]="'/api/designer?template='+ '4f775f23-debf-4ea8-837e-15dbb299af61'"
                                   width="100%" [height]="clientHeight | async">
      </stimulsoft-designer-angular>
    </div>
  </div>

Code: Select all

clientHeight = new BehaviorSubject<string>('80vh');

  @ViewChild('host')
  host: ElementRef;

  constructor(public app: AppService) { }

  ngOnInit(): void {
  }

  updateHeight(height: any): void {
    if (height !== 0 && height !== undefined) {
      if (this.clientHeight.value !== height + 'px') {
        this.clientHeight.next(height + 'px');
      }
    }
  }

  ngAfterViewInit(): void {
    this.updateHeight(this.host.nativeElement.clientHeight);
  }
Lech Kulikowski
Posts: 6471
Joined: Tue Mar 20, 2018 5:34 am

Re: Angular Designer UpdateImagesArray Cache

Post by Lech Kulikowski »

Hello,

Please send us a sample project that reproduces the issue for analysis.

Thank you.
anjung
Posts: 11
Joined: Sun Nov 15, 2020 12:10 pm

Re: Angular Designer UpdateImagesArray Cache

Post by anjung »

Will do, however this will take a few days probably.

I'd suspect some sort of thread resource blocking within the aspnetcore requests.
the first designer event is instant and the following block for 30s or so

the c# code for razor and angular is nearly the same
angular is fully async implemneted and razor is not (yet)
Lech Kulikowski
Posts: 6471
Joined: Tue Mar 20, 2018 5:34 am

Re: Angular Designer UpdateImagesArray Cache

Post by Lech Kulikowski »

Hello,

Ok, we will wait.
anjung
Posts: 11
Joined: Sun Nov 15, 2020 12:10 pm

Re: Angular Designer UpdateImagesArray Cache

Post by anjung »

https://github.com/coronabytes/stimulsoft
It uses MemoryCache for DB Abstraction

There may be a better way to do the resizing?
Pls look over the AngularController if there comes anything to mind what could cause aspnetcore to block - its taken from your examples hoever

When resizing the angular variant this happens:

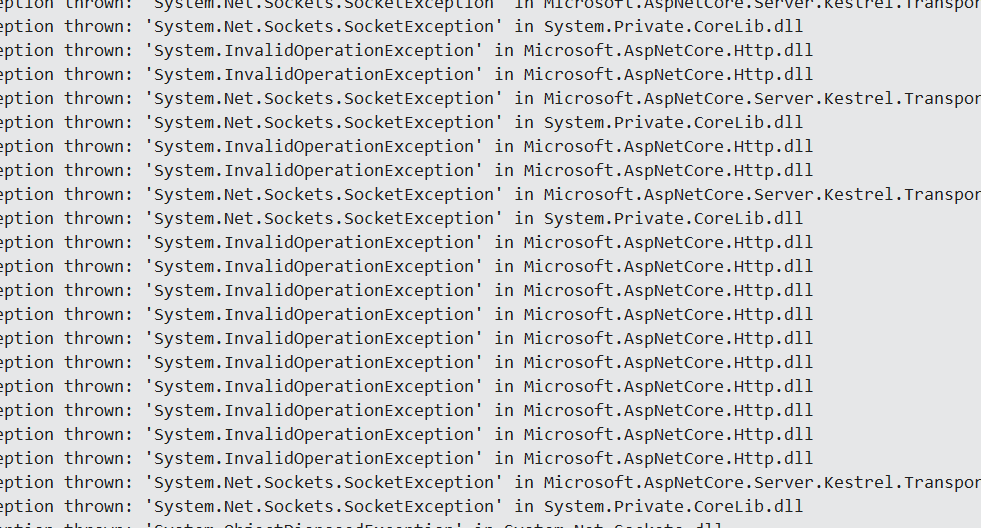

a single resize spams the 2.7 MB UpdatesImagesArrays and causes kestrel throw some exceptions, which are handled internally however
Lech Kulikowski
Posts: 6471
Joined: Tue Mar 20, 2018 5:34 am

Re: Angular Designer UpdateImagesArray Cache

Post by Lech Kulikowski »

Hello,

Thank you for the sample.
We need some additional time to investigate the issue, we will let you know about the result.

Thank you.
anjung
Posts: 11
Joined: Sun Nov 15, 2020 12:10 pm

Re: Angular Designer UpdateImagesArray Cache

Post by anjung »

Hi,

No problem the Razor variant works for now as it should.
One of the Kestrel exceptions seems to be caused by stimulsoft accessing request session - when sessions support is not enabled.
ObjectCache should not require session?
Lech Kulikowski
Posts: 6471
Joined: Tue Mar 20, 2018 5:34 am

Re: Angular Designer UpdateImagesArray Cache

Post by Lech Kulikowski »

Hello,

We need some additional time to investigate the issue, we will let you know about the result.

Thank you.
