Order of Data Bands mixed up

[markbosshard]

Hi

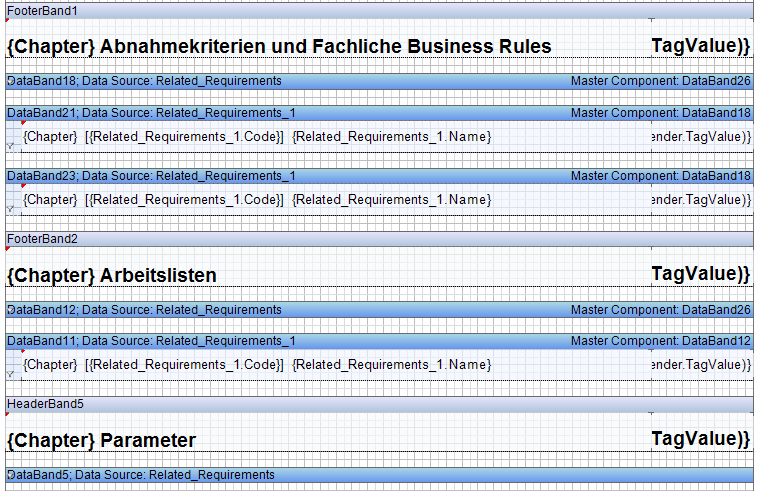

I have the following order in my designer:

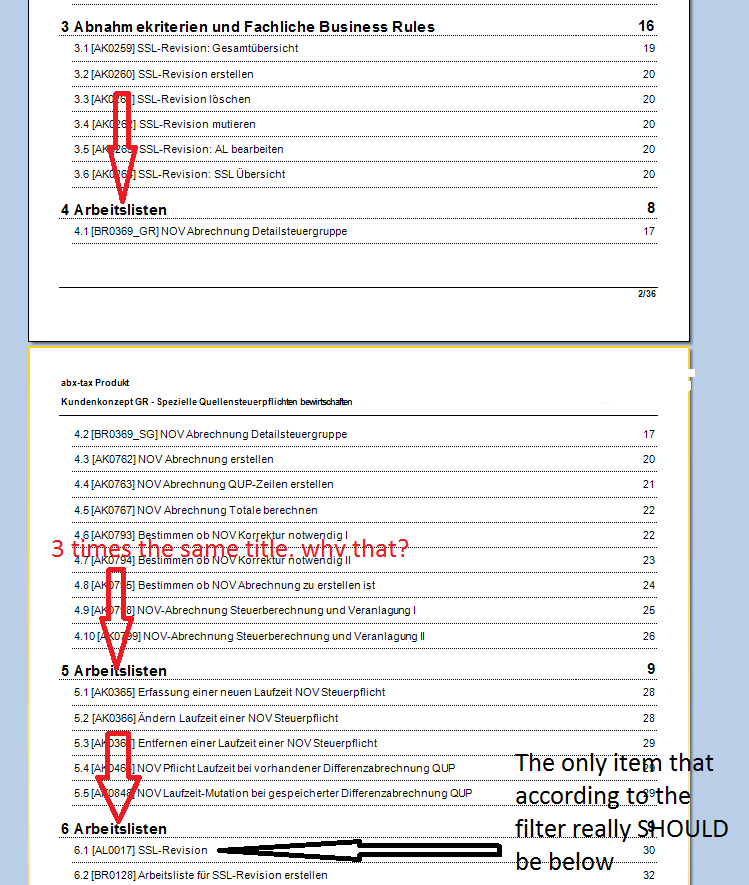

However in my output it is always being completely mixed up.. Remark that the item starting with "AL.." should be the Data band under "Arbeitsliste". It is even duplicating the header "Arbeitsliste" multiple times. Many items appearing under it are taken from one chapter above, they "jump" over the header band.


How can I stop this behaviour? any way to associate data bands to headers?

thanks for any help &
regards

Mark

PS: .mrt file attached as well.

[HighAley]

Hello, Mark.

The Footer Band is connected to first data band above. So there is a FooterBand2 for DataBand11. If you need to show it after all details for DataBand18. You should out the FooterBand2 exactly after the DataBand18.

Thank you.

[markbosshard]

Hi Aleksey

Thanks a lot, I understood the logic behind it and could structure my report nicely with your help!
(Just a side-remark for being understood easier: Note that you cannot make an english sentence only containing "IF", there must follow a "THEN" or a partial phrase).

So my version of the rule is:
A Footerband right after a databandX appears only after all printed references of a databandX (even if it contains nothing to print) are finished. A Headerband appears just above the first use of a DatabandX (even if DatabandX is not being printed, it will appear before its first printed reference).

Issue solved, thanks Aleksey!

regards from Switzerland

[HighAley]

Hello, Mark.

We are always glad to help.

Thank you.
