Hello everybody

I’m using Stimulsoft Reports.Net 2013.3.1800 and i want to create a Risk Matrix Chart. Database is SQLServer.

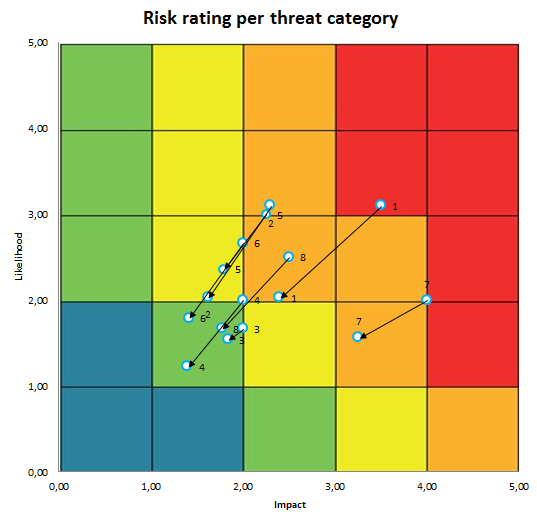

You can view the aim Risk Matrix Chart in the attachement.

The requirements to this chart in detail:

• xy scatter chart
• two points belong together
• data is stored as x1 y1 / x2 y2 in the database table
• Several tuple with two points on a graph
• Linear trendline from point 1 to 2, for each tuple
• At the end oft the line i need an arrow at point 2
• Backgroud image is a png file, with the colours matrix
• The points must be labled. Text comes from the database
• Axis Labeling
  X axis: „Impact 0,00 to 5,00“
  Y axis: „Likelihood 0,00 to 5,00“
• Charttitle

After that, the user gets an multipage pdf with several Risk Matrix Charts and text in it.

my questions:
is it possible to create such a complex chart with this software?
Can you give me some adivce, how to do it?

Thanks for your help

milo

[HighAley]

Hello, Milo.

Unfortuntately, it's impossible to build exactly such chart.
There is even no type of the chart that could build such arrow from one point to another.

Thank you.

[milo]

Hello Aleksey

Thanks for your reply.
Is the arrow the only problem? possibly our customer like the chart without this arrow...

Thanks

[Andrew]

Hello,

Here is a chart as an MRT file attached to this post. This is just a sample of how this can be implemented.

We build a Scatter chart and placed an image behind the chart component keeping it transparent.

Please let us know whether this works for you?
Thank you.
