Subreport not printed correctly

[isoft]

Hello

I am printing a report that uses subreport. The report has 2 columns and the following structure:

ReportTitle
GroupHeaderBand1
GroupHeaderBand2
GroupHeaderBand3 (Subreport)
GroupHeaderBand4
GroupHeaderBand5
DataBand

The SubReport component is placed in GroupHeaderBand3. The problem is that the Subreport is not being printed where it should be, but instead it's printed on a separate page, not before GroupHeaderBand4.

Any ideas as to why this is happening?

P.S. I am adding Suberport dynamically to Main report through GetSubreport event.

Thanks in advance.

[HighAley]

Hello.

Do you add external subreport or not?
Could you send us sample project which reproduces the issue.

Thank you.

[isoft]

Hello

Yes, I am using an external subreport. I have sent already the .mrt files on your support email. Do you want me to send them here again?

Thanks.

Ivan Musa

[Alex K.]

Hello,

Please try to check the place of SubReport. It is placed directly on the Page, not on GroupHeader component.

Thank you.

[isoft]

Hello

Thank you for your response.

I have tried to put it on GroupHeaderBand but it doesn't want to go there. You can try it for yourself. When you drag it onto the GroupHeaderBand, it goes back to the Page.

I am using the 2013.1.1600 version.

Thank you,
Ivan

[Alex K.]

Hello, Ivan

Please try to set the EngineVersion property for report to EngineV2 value.

Thank you.

[isoft]

Ok, I'll try that. Can you please tell me can I set it in the designer or do I have to do it through code and then call the report.Design()?

Thank you

[isoft]

Hello

I have called it through code and it works now.

Thank you and best regards,

Ivan

[Alex K.]

Hello,

We are always glad to help you!

[isoft]

Hello Aleksey

Unfotunatelly, I have one more problem.

The problem is that when set to EngineV2, my ReportTitleBand is spread only on one column. In EngineV1, the ReportTitleBand was spread through entire page and the columns on the first page started beneath the ReportTitleBand. Is there a way to have this in V2?

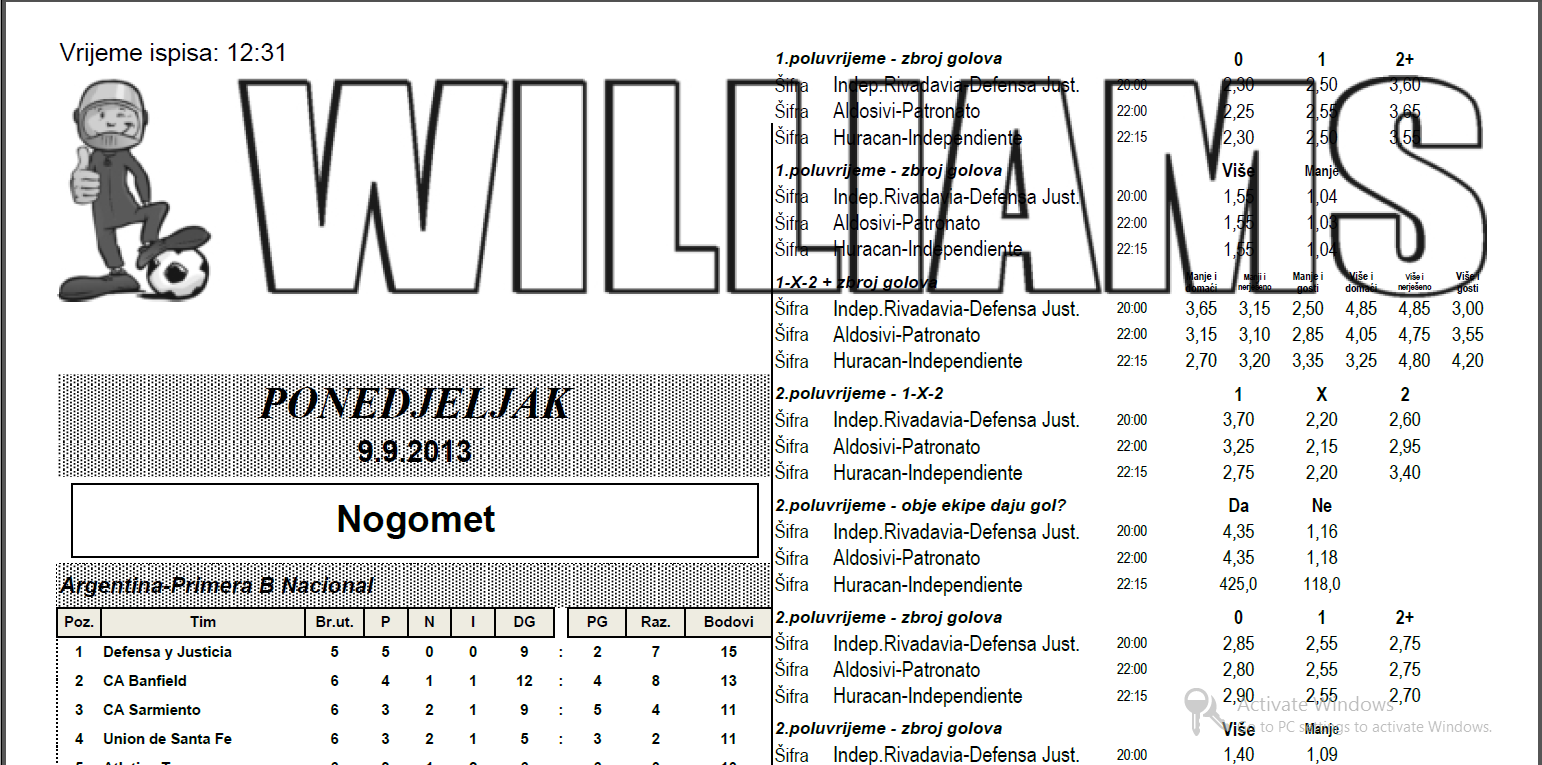

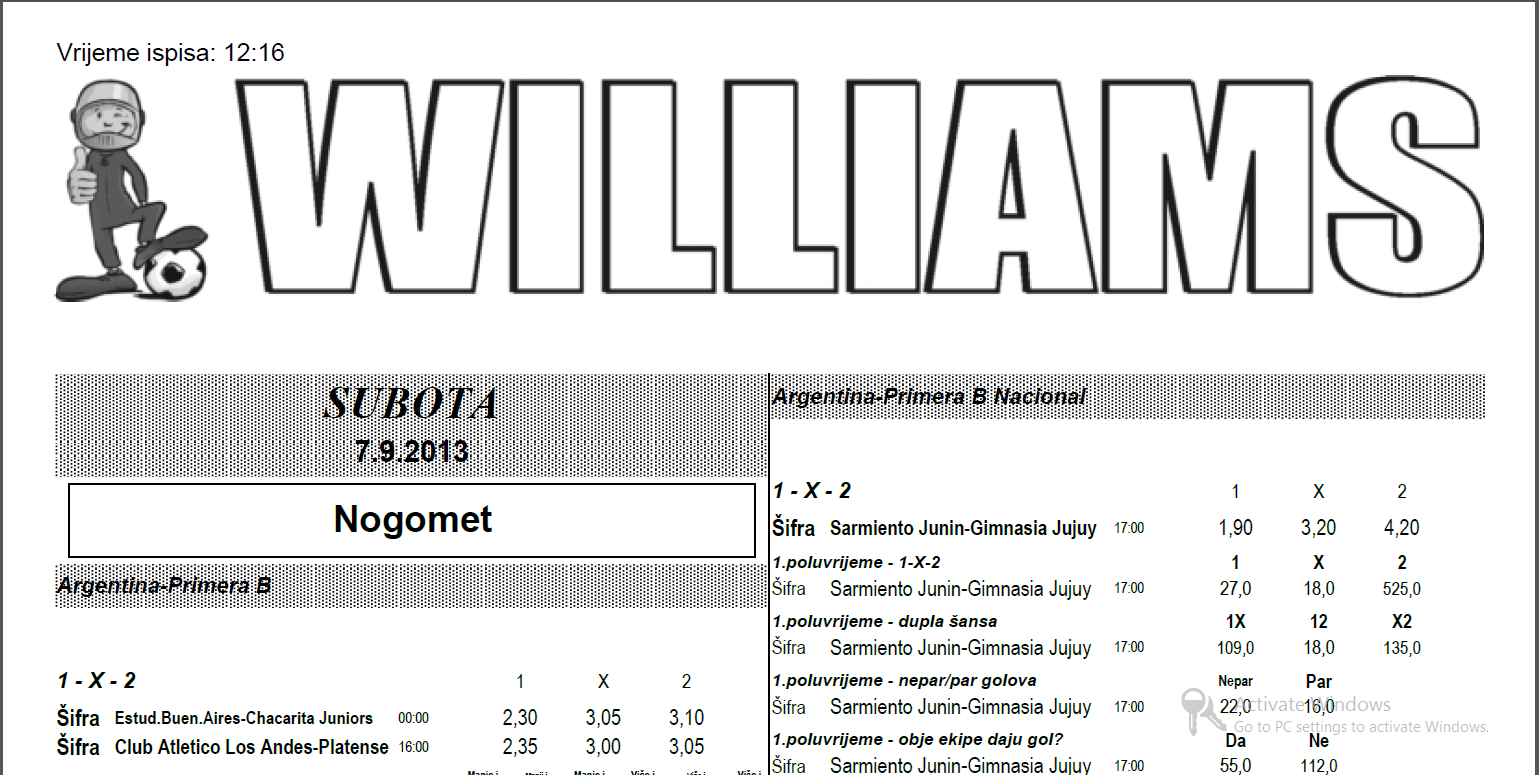

I have attached a V1 and V2 pictures so that you can have a better understanding of what I'm talking about.

Thank you!
