Preview without border and shadow

[samueldearaujo]

Hi!
I need to see a report in an area of my program, without open it in viewer of the Stimulsoft. I tried to use the StiViewerControl and a pictureBox. I want to see if is there a way to remove the border from report’s page and its shadow.

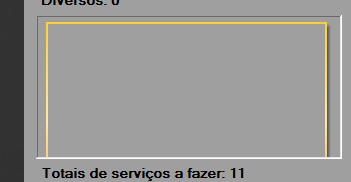

Border in gold color.

(Runtime)

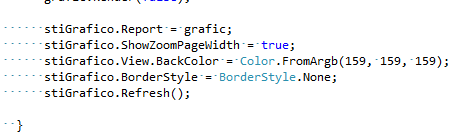

And, if is there also way to remove the border of the stiViewerControl. I was try to set the 'BorderStyle = none' for this stiViewerControl, but nothing happening.
(Runtime)

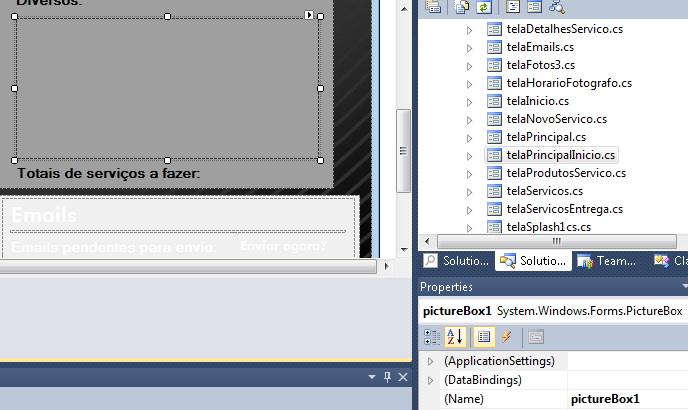

(Design)

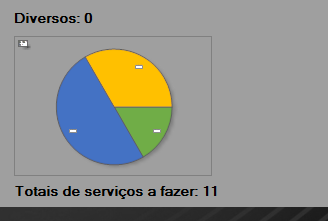

Finaly, like I don’t have sucess before, I tried to get a image from report for show it in pictureBox Control. But I getting a thumbnail of report, not the report in image format.
Is this possible?

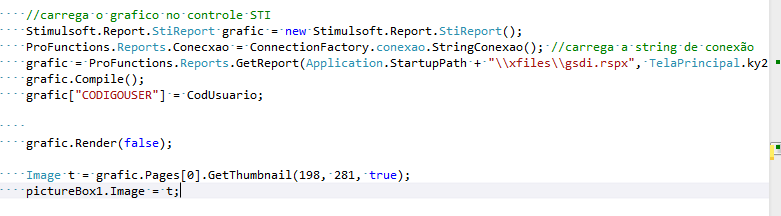

(Code)


(Desing)


(Runtime)


[HighAley]

Hello.

I need to see a report in an area of my program, without open it in viewer of the Stimulsoft. I tried to use the StiViewerControl and a pictureBox. I want to see if is there a way to remove the border from report’s page and its shadow.
Border in gold color.

You could change the Color of the Page Border using next static option: StiOptions.Viewer.Windows.ActivePageBorderColor.

Finaly, like I don’t have sucess before, I tried to get a image from report for show it in pictureBox Control. But I getting a thumbnail of report, not the report in image format.
Is this possible?

You could export report to any format. Read more detailes in our Programming Manual.

Thank you.

[samueldearaujo]

Hi!
Problem solved, i used the option of export to image.
I found more easy. rs..

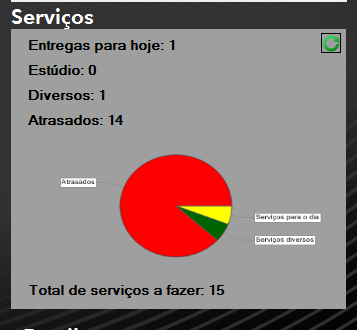

looked like this:


Thanks

[Alex K.]

Hello,

Ok.
Let us know if you need any additional help.
