Font size in Text component with AllowHtml = true

daryof · Post by **daryof** » Mon Apr 02, 2012 4:15 am

Hello,

With Stimulsoft Reports.Fx for PHP prerelease build 2012.03.07

I have a text with html tags, the font size rendering i can see in preview is smaller than the same html rendered in browser...
Am i missing something?

Code: Select all










  EngineV2




      None;Black;2;Solid;False;4;Black
      Transparent


          Transparent
          0.2,0.4,18.4,8.6


              True
              Transparent
              0.8,0.6,17.2,6.2

              Arial,10
              0,0,0,0
              Text1


              <html><body>
<p><font size="10" face="sans-serif">A text with font size 10 </font><br>
<font size="2" face="sans-serif"> A text with font size 2</font></body></html>
              Black



          Panel1





      5b46f3b473d1b6a7d2587215f4a4fe23
      1,1,1,1
      Page1
      29.7
      21


        Arial,100
        [50:0:0:0]




  Report
  04/02/2012 10:05:10 AM
  04/02/2012 10:05:03 AM

  7a0fc963acec0b05949d7216127cb7f5
  Report
  Centimeters
  2012.1.1215
  CSharp

Post by **Vladimir** » Tue Apr 03, 2012 9:28 am

Hello,

We could not reproduce the error. Please send us screenshots.

Thank you.

daryof · Post by **daryof** » Tue Apr 03, 2012 9:56 am

Hello,

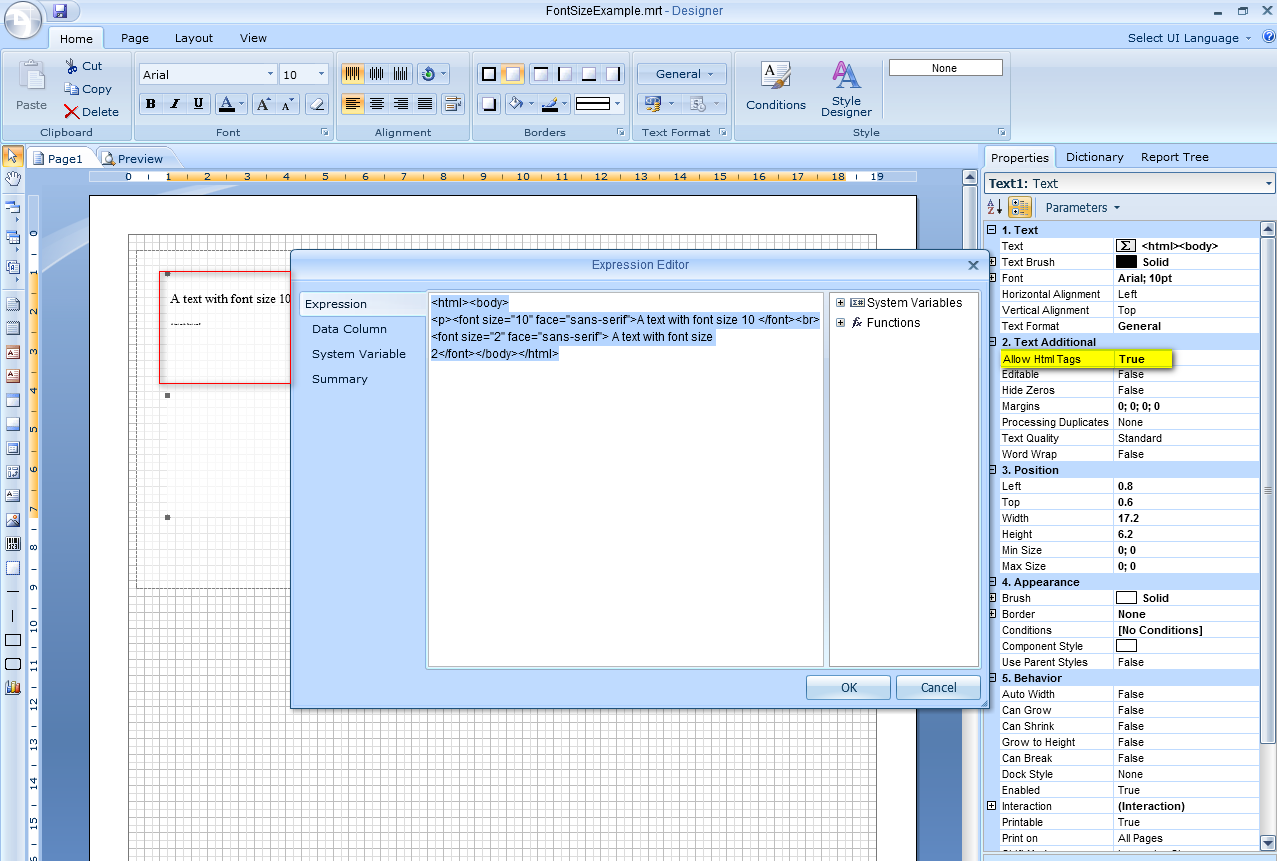

in the report i have created only a text field and inside there is html code, as you can see the font size="2" is too small in preview....

(I have a ticket application (Kayako...) with ticketpost made in html, the posts have font size="2" and they are visible
in browser and in kayako very well, in my stimulsoft report these posts are unreadable because too smaller...)

Post by **HighAley** » Wed Apr 04, 2012 3:56 am

Hello.

daryof wrote:in the report i have created only a text field and inside there is html code, as you can see the font size="2" is too small in preview....

(I have a ticket application (Kayako...) with ticketpost made in html, the posts have font size="2" and they are visible
in browser and in kayako very well, in my stimulsoft report these posts are unreadable because too smaller...)

The size is in pixels.
We don't have full support of all html tags.
The list of supported tags you could find in our Stimulsoft Reports.Fx Universal User Manual.

Thank you.

daryof · Post by **daryof** » Wed Apr 04, 2012 5:07 am

Hello,

Yes, i have seen the manual "Stimulsoft_Reports.Fx_Manual.En.pdf"

3.6.1.3 Size Parameter

The size parameter defines the size of the text in the font element in points. For example:

If the expression is incorrectly formulated then the parameter is ignored.
Alternative Tags
The font size can also defined separately using the tag. For example:

Post by **HighAley** » Fri Apr 06, 2012 8:23 am

Hello.

Sorry for delay. We need more time to prepare an answer for you.

Thank you.

Post by **Vladimir** » Mon Apr 09, 2012 2:53 am

Hello,

We have fixed this error, the update will be available in the first prerelease build on the next week. If you need to update immediately, please make a request to support[at]stimulsoft.com, in the letter specify your registration data and link to this forum thread.

Thank you.
