Excel Export Into Tabs

Post by Eddy78 »

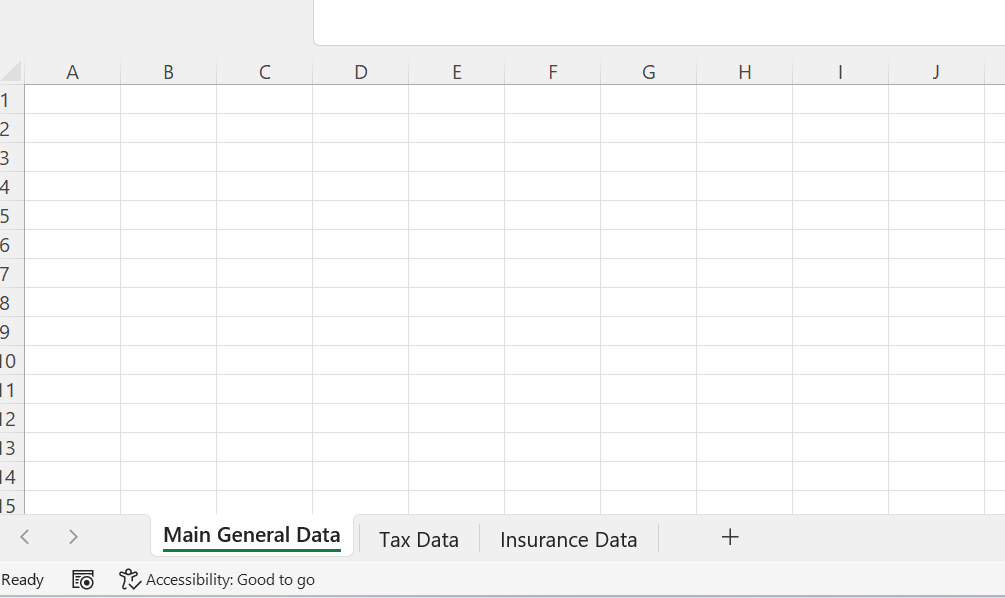

Is there a way to set up the download of a report to fall into Tabs in Excel. I have 3 data sources for 3 different but all in one.
I would like to set it up such that when It's downloaded the 3 reports each will show up in Excel Tab
Attachments
Lech Kulikowski
Posts: 7332
Joined: Tue Mar 20, 2018 5:34 am

Re: Excel Export Into Tabs

Post by Lech Kulikowski »

Hello,

You can use the ExcelSheet property of the page.

Thank you.
Attachments
Screenshot 2024-07-28 203949.png
Screenshot 2024-07-28 203949.png (205.93 KiB) Viewed 22510 times
Report.mrt
(788.76 KiB) Downloaded 755 times
Eddy78
Posts: 30
Joined: Fri May 05, 2023 4:45 pm

Re: Excel Export Into Tabs

Post by Eddy78 »

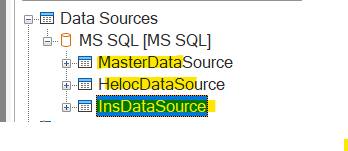

Thanks for pointing me in this direction. However, I have done the same and this only works for one column in one DataSource. As per my screenshot below I have 3 datasources And I want all three reports to run at the same time and then download each report in one Excel File but each on it's own Tab.
Attachments
Last edited by Eddy78 on Thu Oct 31, 2024 5:46 pm, edited 1 time in total.
Lech Kulikowski
Posts: 7332
Joined: Tue Mar 20, 2018 5:34 am

Re: Excel Export Into Tabs

Post by Lech Kulikowski »

Hello,

Please send us a sample report with test data that reproduces the issue for analysis.

Thank you.
Eddy78
Posts: 30
Joined: Fri May 05, 2023 4:45 pm

Re: Excel Export Into Tabs

Post by Eddy78 »

I have managed to get it to work. Before I was adding all the Reports on one page. I broke them out into 3 pages and then on the Export Excel Sheet Properties I gave each page the {DatasourceName} and on the Save to Excel I selected All bands and selected the "Use One Page Header and Footer"
Last edited by Eddy78 on Thu Oct 31, 2024 5:45 pm, edited 1 time in total.
Lech Kulikowski
Posts: 7332
Joined: Tue Mar 20, 2018 5:34 am

Re: Excel Export Into Tabs

Post by Lech Kulikowski »

Hello,

Thank you for the information.
